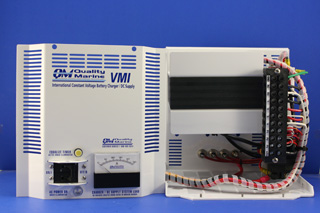

Charger Features

  • Standards Compliant: Built to meet or exceed UL, CSA standars for ABYC, DNV, ABS, and USCG installation requirements. Meets UL-1236 for drip proof requirement. Built with materials meeting 94-VO for flame retardance. Meets or exceeds CEC (California Energy Commission) Title 20 efficiency.
  • Multiple Battery Chemistry Compatibility: Compatible with most popular battery types including: lead acid, VRLA, lead calcium, gel cell, floaded or sealed. (**Lithium batteries are not supported at this time***)
  • Percise Constant Voltage Regulation: Regulates to 0.5% from no load to full load.
  • Extended Battery Life:When properly configured, proven to extend the life of the battery through percise regulation and charge algorithm.
  • 100% Continuous Output: No fans to fail, 100% convection cooled. Will hold 100% output and rated voltage at 50 deg C with no degradation.
  • Isolation Transformer: Built around a rugged line frequency isolation transformer. Reduces galvanic issues. 50/60hz, 120, 208, 220, 240VAC single phase input.
  • 3 Bank Capability Diode isolated output that will maintain 3 separate battery banks of the same voltage and chemistry.
  • Reverse Polarity Protected.
  • Pseudo 3-Step Charging Algorithm: Independently adjustable voltage settings for absorption/equalize and float steps.
  • Power-Up Option: Can be set to auto equalize or powerup in float.
  • Cycle Time Control: 0-124 hour user configurable equalize timer.
  • Surge Damped: 50% load change response less than 1 second.
  • Ignition Protected: AC breaker is ignition protected as well as the DC output fuse.
  • Digital Status Display: Fully digital display with system current and charge mode. Voltage for individual banks may be displayed* (*optional). Remote capable with optional upgrade kit.
  • RFA (Remote Failure Alarms): Optional AC fail and charger fail alarms with form C relay contacts to indicate AC input and/or charger output failure.
  • Soft Start: Protects connected loads from inrush surges at startup.
  • 35+ Year Live Expectancy: Built to last!
  • Installation Kit Included: "No Flange" EZ-Mount installation bracket included.
  • Custom Charger Builds: Ability to custom build a charger for your specific needs. Please contact us for more info.

    •

    Charger Lineup

    Voltage

    Amps

    Model #

    *Case Size

    Weight (lbs/kg)
    12
    20
    12202
    2
    37/16.8
    35
    12352
    2
    39/17.7
    50
    12502
    2
    52/23.6
    75
    12753
    3
    92/41.8
    100
    121003
    3
    101/45.8

    24
    15
    12152
    2
    37/16.8
    30
    24302
    2
    52/23.6
    50
    24503
    3
    85/38.6
    75
    24753
    3
    115/52.2
    100
    241003
    3
    135/61.2

    32/36
    20
    32302
    2
    46/20.9
    30
    32303
    3
    84/38.1
    50
    32503
    3
    104/47.2

    48
    10
    48102
    2
    42/19.1
    40
    48303
    3
    115/52.2

    Charger Upgrades and Accessories

    Upgrades and Accessories for Your Quality Marine VMI, McCarron and Ratelco Chargers











    Option

    Part #

    Discription
    Remote Failure Alarm
    		 RFA-OPTION Form C relays, signals DC output and/or AC input failure
    VMI Control Board
    		 300-2600-00 Un-configured universal smart charge control printed circuit board, compatible with any VMI or
    upgraded older McCarron or Ratelco VM charger
    Factory Configured VMI Control Board
    		 300-2600-FC Same as the VMI control board but factory configured for customer specified voltage and amperage output.
    Please specify required settings when ordered
    Ratelco Retro-Fit Kit
    		 300-2600-KT Upgrade an older McCarron or Ratelco VM charger to Smart Charge. Features include:
    Float/Equalize voltage adjustments, equalize time control, soft start, cross talk elimination,
    and +- 1/2 of 1% voltage regulation. Kit includes 300-2600-FC control board, FL/EQ switch, decal,
    and install instructions
    VMI Remote Kit
    		 VMI-REMOTE-KIT Ammeter and FL/EQ switch with equalize indicator light. Panel NOT included
    VMI Battery Fail Safe Kit
    		 VMI BFS-KIT Battery fail safe compensation kit, included in all 2008+ models.
    Protects the VMI control board and connected equipment from elevated AC ripple
    due to dead batteries, cell shorts, and accidental battery disconnection.
    Improved EMI properties. Recommended installation instructions included
